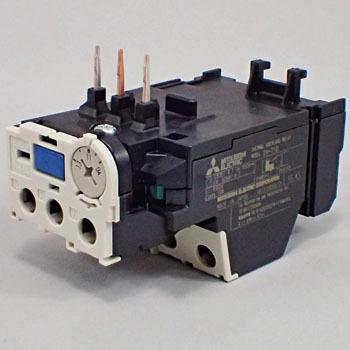

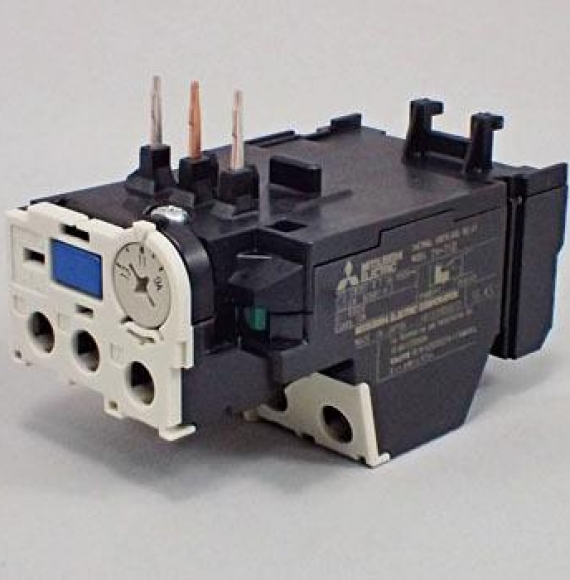

Mitsubishi Relay TH-T series
Liên hệ
434
- Thông tin sản phẩm
- Bình luận
Feature
- Mitsubishi Relay TH-T series adjust the minimum operating current with the standard electric wire size
- TH-T series replace TH-N series
- The TH-T type Thermal Overload Relays are adjusted with the Magnetic Starters in the standard box (the MS type) relative to the ambient temperature of 20°C
(The temperature on the control board of the MSO type Magnetic Starters is 35°C)
Specifications
|
Number of Elements |
2 |
|
Model name for Magnetic Starters |
TH-T18 TH-T25 TH-T50 TH-T65 TH-T100 |
|
Use condition - Ambient temperature (°C) |
-10 to +40 (Standard: 20°C; maximum temperature on the board: 55°C) |
|
Rated short-circuit breaking capacities Icu (kA) |
- |
|
Rated insulation voltage Ui (V) |
690 |
|
Rated impulse withstand voltage Uimp (kV) |
6 |
|
Terminal screw size |
TH-T18: M3.5 TH-T25: M4 TH-T50: M5 TH-T65, TH-T100: M6 |
|
Standards |
IEC60947-4-1,EN60947-4-1,JIS C8201-4-1,GB14048.4 |
